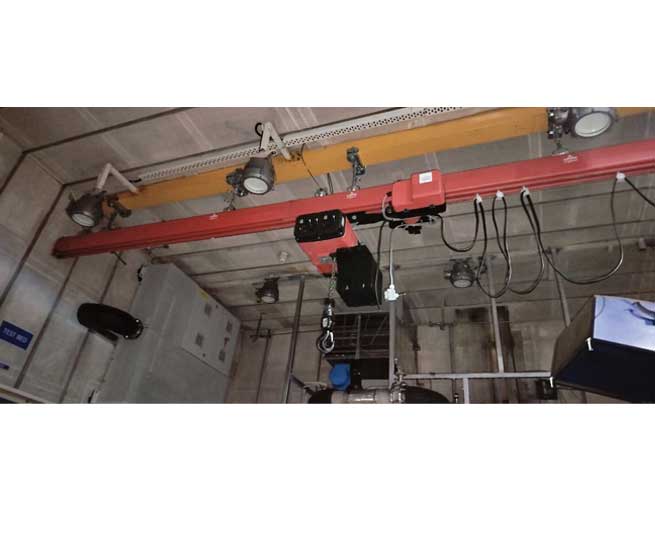

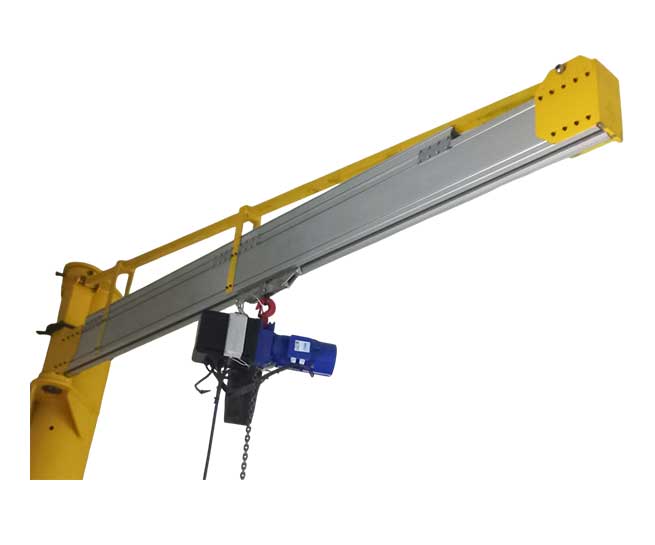

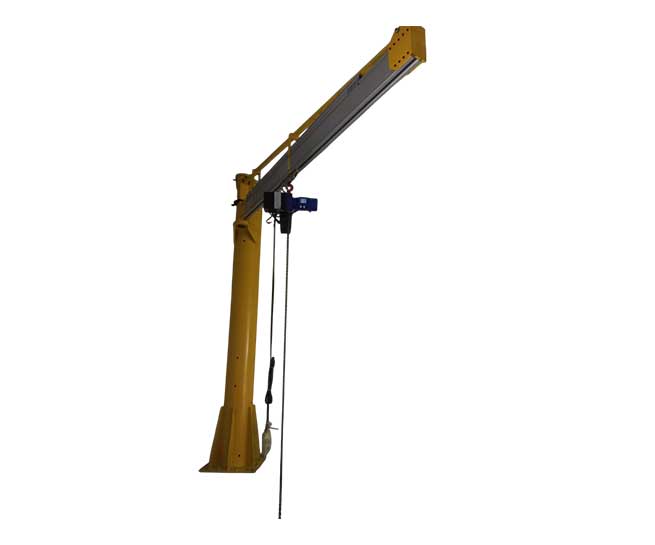

DKK Services Aluminium Rail System is a versatile and lightweight material handling solution designed to enhance productivity and safety in various industrial applications. Made from high-quality aluminum, this rail system offers a durable and corrosion-resistant option for supporting and guiding equipment such as hoists, trolleys, and cranes.
Our Aluminium Rail System is engineered for easy installation and adaptability, allowing for quick adjustments to accommodate changing workspace layouts. The modular design enables users to create custom configurations that suit their specific needs, making it ideal for assembly lines, warehouses, and manufacturing facilities.
With its smooth surface and low friction properties, the aluminium rail system ensures efficient movement of loads, reducing wear and tear on equipment while minimizing maintenance requirements. Additionally, the lightweight nature of aluminum makes it easier to handle during installation and modifications, reducing labor costs and downtime.

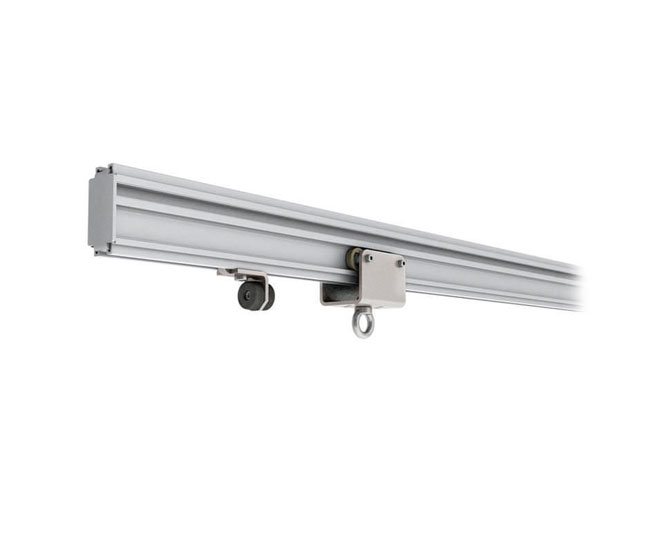

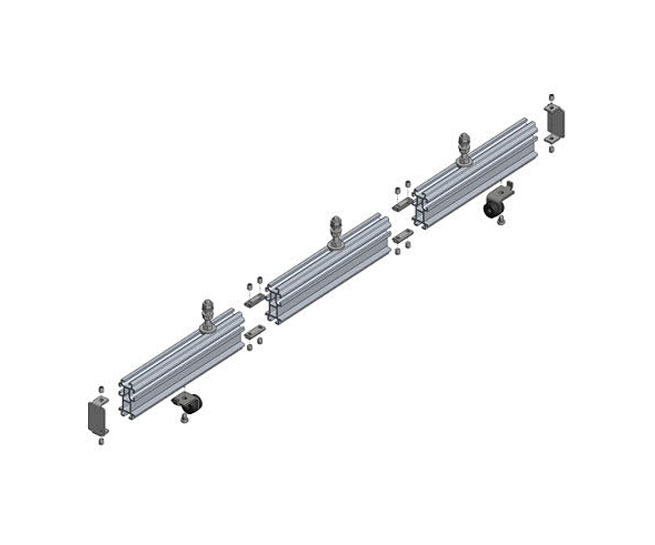

The aluminum rail profile C75 without compressed air can be combined with the coupling set to form any length of line. The rail profile is particularly well suited for assembly lines or workplaces which demand a high degree of flexibility.
The process of picking up tools can be implemented extremely easily with the aid of carrier units. The fastening grooves on the rail profile enable the direct attachment of accessories, e.g. lamps, energy carrier systems, conductor rails, etc.
If a compressed air rail system is required, this can be implemented with the A62 or A180 series.
| Type | 12806.3 | 12806.6 |
|---|---|---|
| Length (mm) | 3000 | 6000 |
| Weight (kg) | 5.5 | 11 |
| Moment of Inertia | 36 cm4 |
|---|---|
| Weight | 1.82 kg/m |
| Load Capacity |
65 kg as point load with 2 m bracing 80 kg with work stations with 2 m bracing |
| Rail Material | Aluminum, anodized colourless |
