DKK jib cranes are vital to any production process requiring speed, accuracy, and minimal downtime. Designed for a seamless user experience, they are versatile, durable, and serve almost any kind of workstation, providing support for overhead cranes on production lines, and helping to keep terminals, machining cells, and warehouses operating smoothly.
With several different ways to fix the jib to the wall or floor, and a variety of hoists available, they are perfectly suited to most customer facilities. The cranes have a load capacity of up to 2,000 kg and a slewing motion that can reach 300 degrees with a pillar jib, and 270 degrees with a wall mounted jib.
The dkk wall-mounted and pillar jib cranes have common product features, including:
| Standard features | Pillar-mounted Jib crane | Wall-mounted Jib crane |
|---|---|---|
| Lifting capacity | 3,000 kg | 2,000 kg |
| Crane control | Radio / pendant | Radio / pendant |
| Maximum rotation | 360º/270º | 270º |
| Hoist options | Manual hoist, electric chain hoist, air balancer | EC Machinery Directive |
| Humidity | Maximum 80 % relative humidity | Maximum 80 % relative humidity |
| Ambient temperature* | -20 °C to +70 °C | -20 °C to +70 °C |
| Surface protection and paint** | Category C2-M corrosion protection according to DIN EN ISO 12944 | Category C2-M corrosion protection according to DIN EN |
Multiple designs for jib arms based on customer requirements

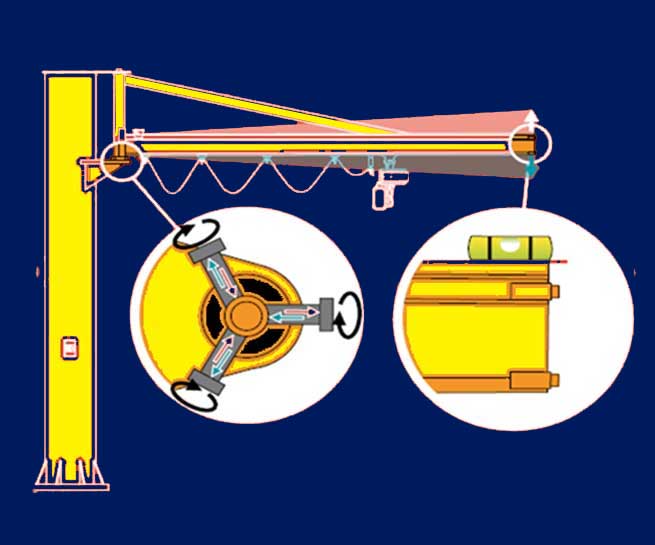

Steady slewing with robust bearing and adjustable slewing resistance
Manual slewing available for all types
Slewing limiter allows rotation adjustment every two degrees
Clamp fitting lets slewing limiter be added after installation
Motorized slewing for jibs with I-beam arms
Standard on/off safety switch with pillar jibs (optional for wall-mounted)
Robust festooning and easy running with reliable cable carriers
Pillar-mounted jibs allow cables from below, side, or above
Selection of hoists: manual, electric chain, and pneumatic lifting devices
Applies to the jib crane steel structure only. Other components such as different hoist types have more narrow operating conditions.
Higher-grade protective paint or other paint colours on request.5`
DKK jib cranes are fast and precise tools for material handling with the following product benefits:
Easily adapts to your multipurpose facility with a wide range of options
Improves safety and productivity
Efficient and accurate load handling up to 2,000 kg
Advanced ergonomic design and adjustable features enhance the operator experience
Simple to install and relocate
Longer lifecycle with low maintenance requirements
Easy serviceability minimizes downtime
| Product Name | Jib Crane 360 Degree Rotation Motorized and Manual |
|---|---|
| Application | Machine Shop and Foundry application (also use for heavy product lifting) |
| Material | IS 2062 |
| Welding Type | C02 and Arc |
| Lifting Weight | 125kg to 3.2 ton capacity |
| Sefl Weight | 500kg to 1 . 5ton (approx) its majorly depends on designs and situations |
| Life of Product | 8 to 10 years |
| Motor | Depend on customer demands |
| Electric | yes |
| Max span | 6 Mtr |
| Maintenance | Easy to repair |
| Phase of Electricity | 3- phase |
| Capacity | 125kg to 3.2ton capacity |
360° Electrical Rotating Column Jib Cranes for Sale
Steady slewing with robust bearing and adjustable slewing resistance
CRANES Electrically Rotated series jibs are ideal for handling high or bulky loads, and it’s extremely rigid with a solid base plate.
This electrical rotating jib crane does not allow for manual handling, and it’s ideal for outdoor squares, deposits, loading ramps and on wharves.
This model is available for lifting loads from 500kg to 32,000kg, and we can guide you through each of its
